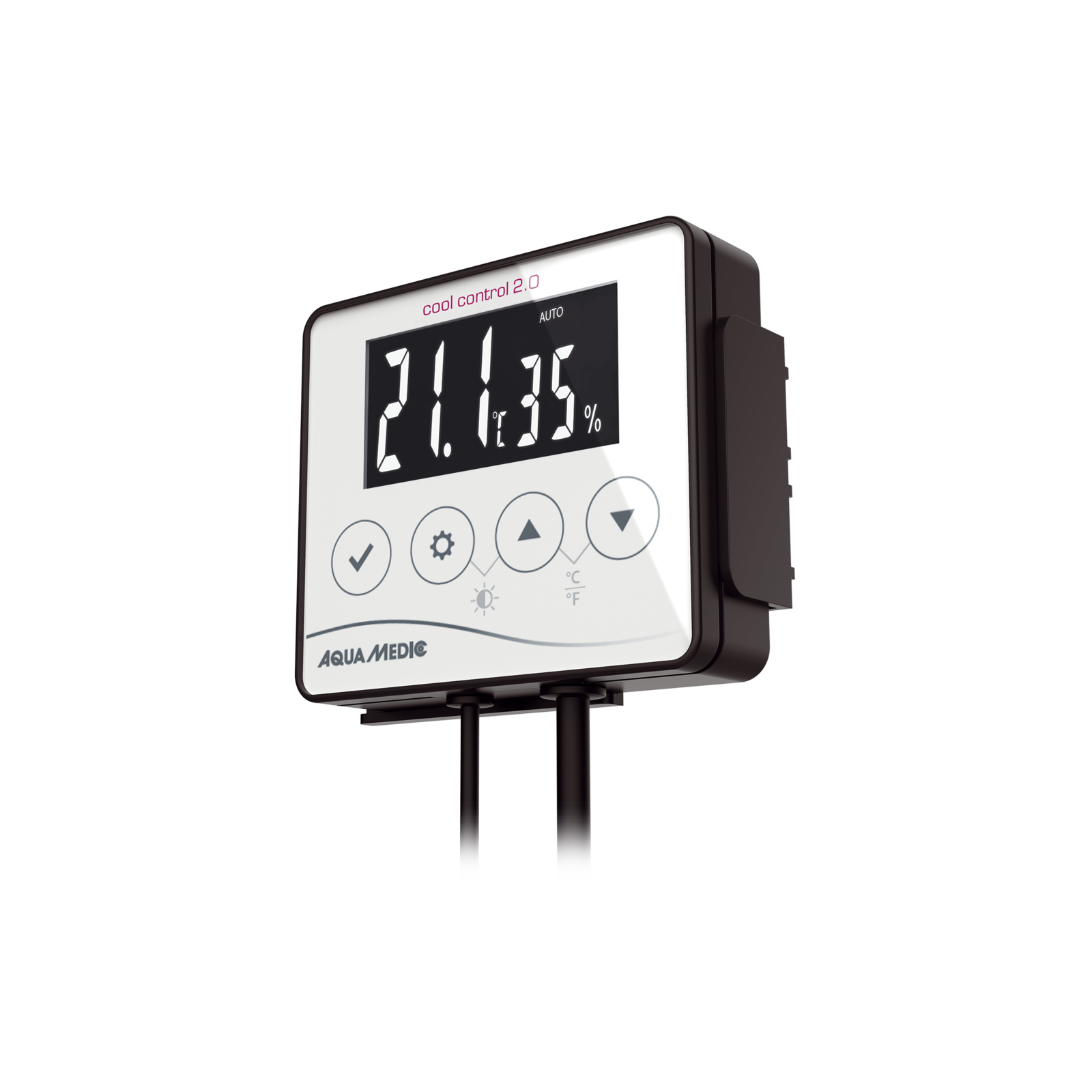

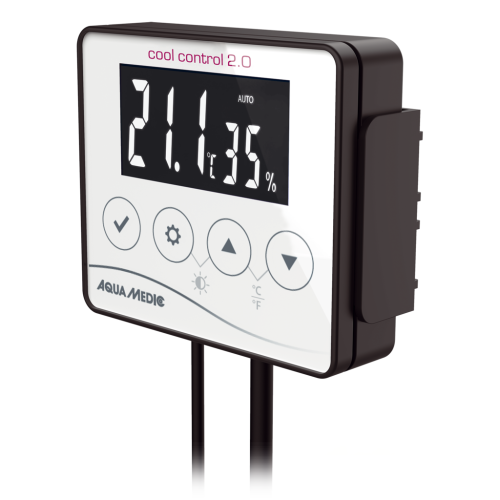

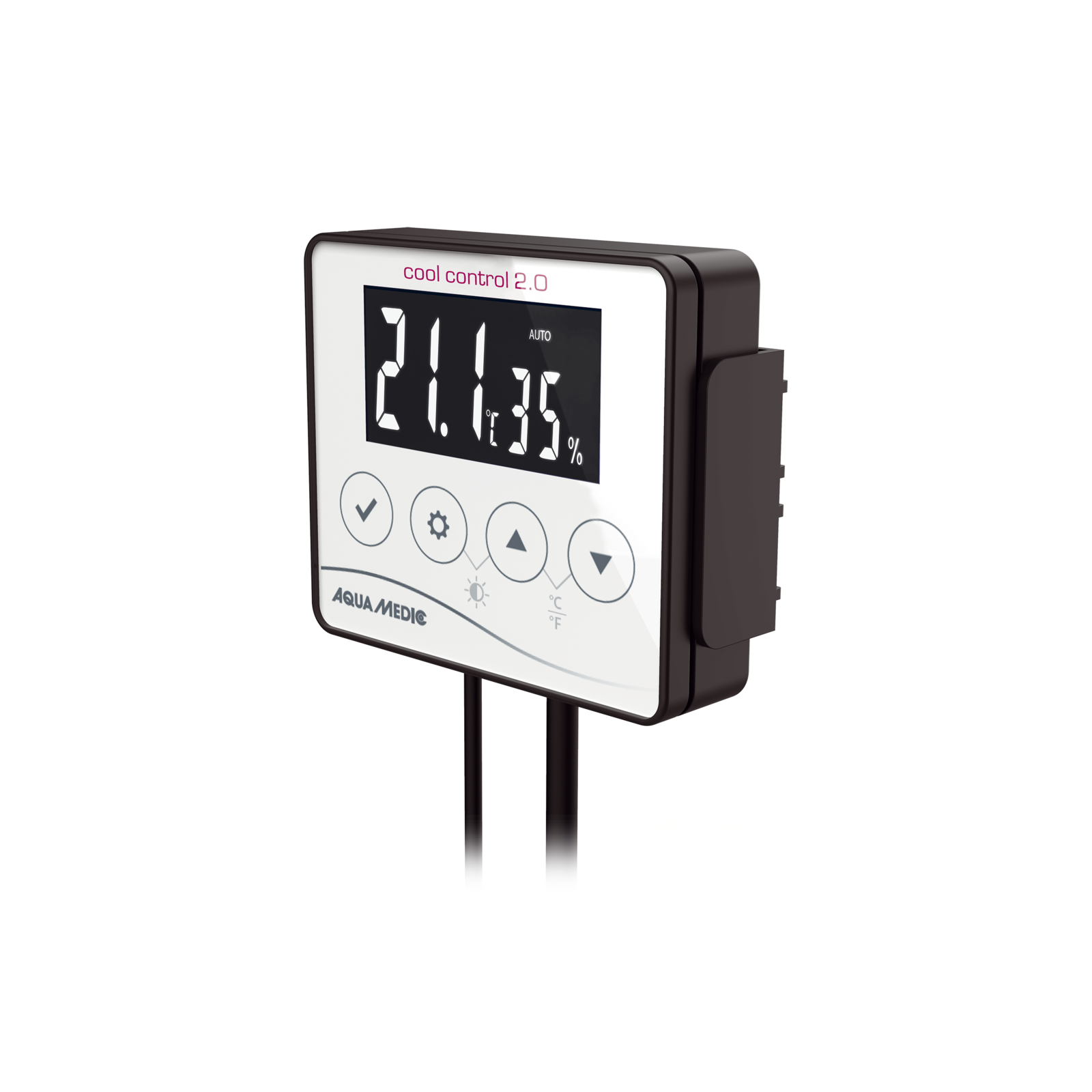

Aquamedic Cool Control 2.0 - Digital thermoregulator for cooling fans

Cool Control 2.0 is a digital thermoregulator designed for precise temperature control via low voltage cooling fans. It is particularly suitable for aquariums, technical terrariums, closed furniture and electronic systems where thermal control is fundamental to the stability of the environment.

The device monitors the temperature through a waterproof probe and automatically adjusts the speed of the connected fans, preventing overheating and harmful thermal variations for aquatic organisms and equipment.

Smart operation and control

The system detects the temperature of the environment or water and modulates the fan speed based on the setpoint set.

• keeps the temperature stable

• reduces evaporation and thermal changes

• improves the safety of the aquatic ecosystem

• optimize energy consumption

Advanced adjustment accuracy

Cool Control 2.0 offers superior accuracy than traditional controls.

• adjustable switching precision from 0.1 to 1.5 ° C

• setuppoint setting with 0.1 ° C increments

• operating interval from 16 ° C to 40 ° C

• quick response to temperature variations

This precision is essential for sensitive species and tropical aquariums.

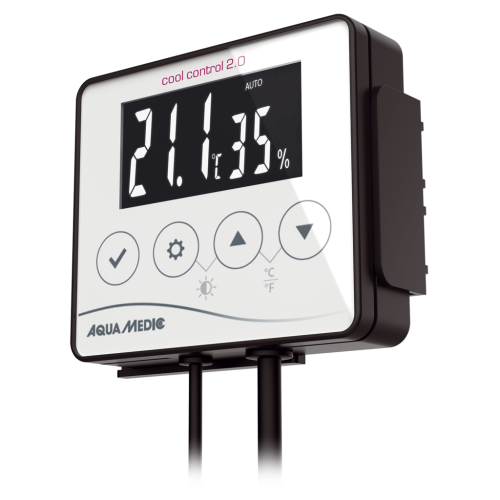

Touchscreen information display

The LCD Touchscreen display allows intuitive management and immediate display of operating parameters.

View:

• current temperature detected

• set temperature (setpoint)

• fan power (30-99%)

• system operating status

The interface allows quick and understandable adjustments to beginners.

Dynamic fan power control

The controller automatically adjusts the speed of the connected fans.

• power adjustable from 30% to 99%

• silent and progressive operation

• reduction of fans wear

• greater energy efficiency

Waterproof temperature probe

The probe included allows precise measurements even in wet environments or directly in water.

• high precision waterproof sensor

• cable length about 1.75 meters

• flexible positioning in sump, aquarium or technical compartment

• stable and reliable detection

Electrical compatibility and links

The Cool Control 2.0 is designed for use with low voltage fans.

• compatible with 12V or 24V DC fans with 5.5 × 2.1 mm coaxial connector

• supported maximum power: 65 W

• simple and secure connection

Fundamental note:
The device only has a DC output for fans and does not include power outlets. It is not a power supply and cannot power devices directly from the mains.

Technical specifications

• Temperature control interval: 16 - 40 ° C

• Precision Setting: 0.1 ° C

• Switching accuracy: 0.1 - 1.5 ° C

• Maximum power: 65 W

• Fan power control: 30 - 99%

• Dimensions: about 93 × 80 × 25 mm

• Sensor cable length: about 1,750 mm

• Fan connection: Coaxial jack 5.5 × 2.1 mm

• Output: DC 12V (fans only)

Advantages for aquarium

Temperature control is fundamental for the health of aquatic organisms. High temperatures can cause:

• dissolved oxygen reduction

• thermal stress for fish and invertebrates

• proliferation of algae and unwanted bacteria

The use of controlled fans automatically allows:

• keep stable temperatures in hot months

• prevent hazardous thermal peaks

• improve the well-being of the ecosystem

Installation and use

• Connect the compatible fans to the controller's DC output.

• Place the probe in the area to be monitored.

• Set the desired temperature via Touchscreen.

• The system will automatically adjust ventilation.

Intended use

Ideal for:

• freshwater and marine aquariums

• tropical heat sensitive aquariums

• caridine and invertebrates sensitive to thermal variations

• ventilated Terrariums and Technical Environments

• closed aquarium furniture or sump compartments
