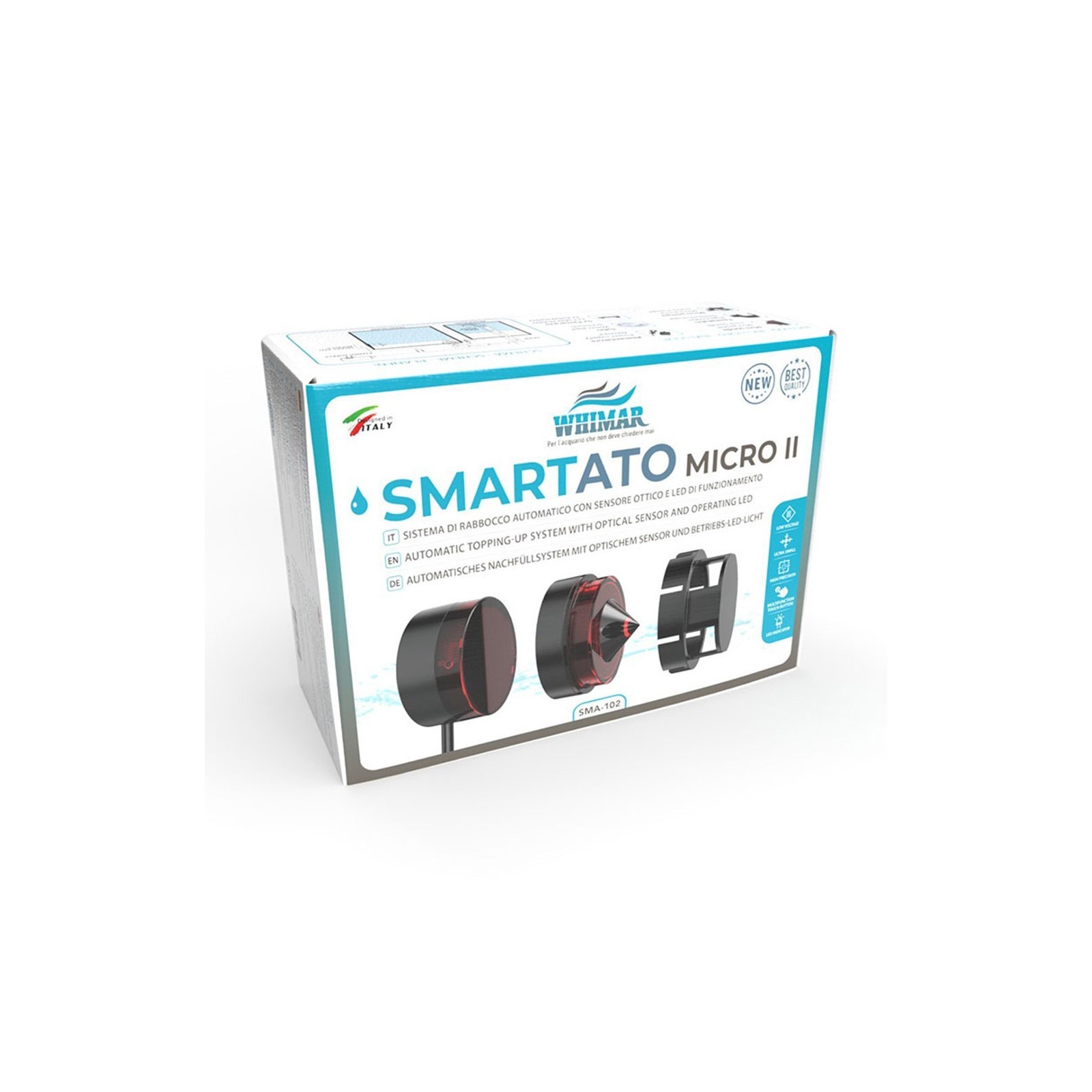

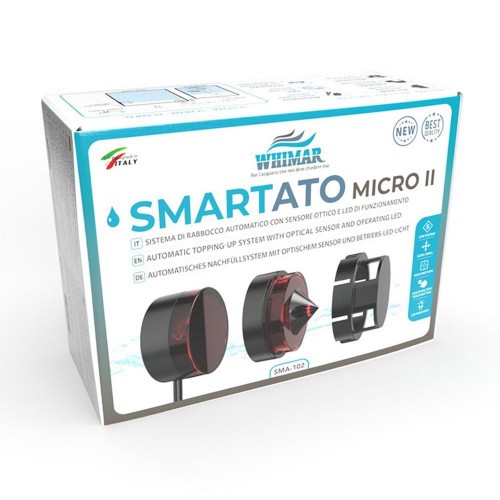

Whimar Smart ATO Micro II - Automatic top up system with optical sensor and operating LEDs

The Whimar Smart ATO Micro II is an advanced automatic top up system designed to guarantee maximum reliability even in reduced spaces. The patented "contactless" digital optical sensor detects the water level without mechanical components subject to wear, guaranteeing yield and long-term precision.
The double LED indicates the operating status in real time: green for normal operation, red for anomalies or low level.

Few steps are enough for the installation: the sensor is fixed to the glass up to 10mm via magnetic support. The desired level is adjusted, the DC Brushless micro-pump is connected (flow up to 280L / h, lifting 200cm) and the tube is positioned in the reserve tank. No manual intervention is required: the system automatically adjusts top up to the set level.

Equipped with AFS (Auto-Feedback Security) technology, the device immediately stops operation in the event of anomaly (end tube, obstruction, malpoosing), protecting the overflow or dry aquarium. The brushless micro-pump and the absence of fatigued parts guarantee long life and operational silence.

Whimar Smart ATO Micro II is ideal for marine aquariums, reefs and desserts of all sizes, especially in the presence of sumps or external systems, offering precise level control and salinity, without requiring constant monitoring.

Product specifications

• "Contactless" digital optical sensor (2 control points)

• Double color LED indication (green / red)

• Brushless Pump DC 12V (43 × 28mm) - Max 280L / h flow, lifting up to 200cm

• AC 100-240V power supply to 12V 2A

• 1.5m power cable - 2m water hose with magnetic support

• Compatible with thickness glass up to 10mm

• Built-in AFS technology for maximum safety

Advantages for the user

• High precision and duration thanks to the non-contact optical sensor

• Immediate visual feedback of the state of operation

• Rapid installation and without tools, perfect for aquariums and sump

• Reliable and secure system: prevents overflowing and dried

• Suitable for every type of aquarium, especially the content or medium-sized bugdet reef
