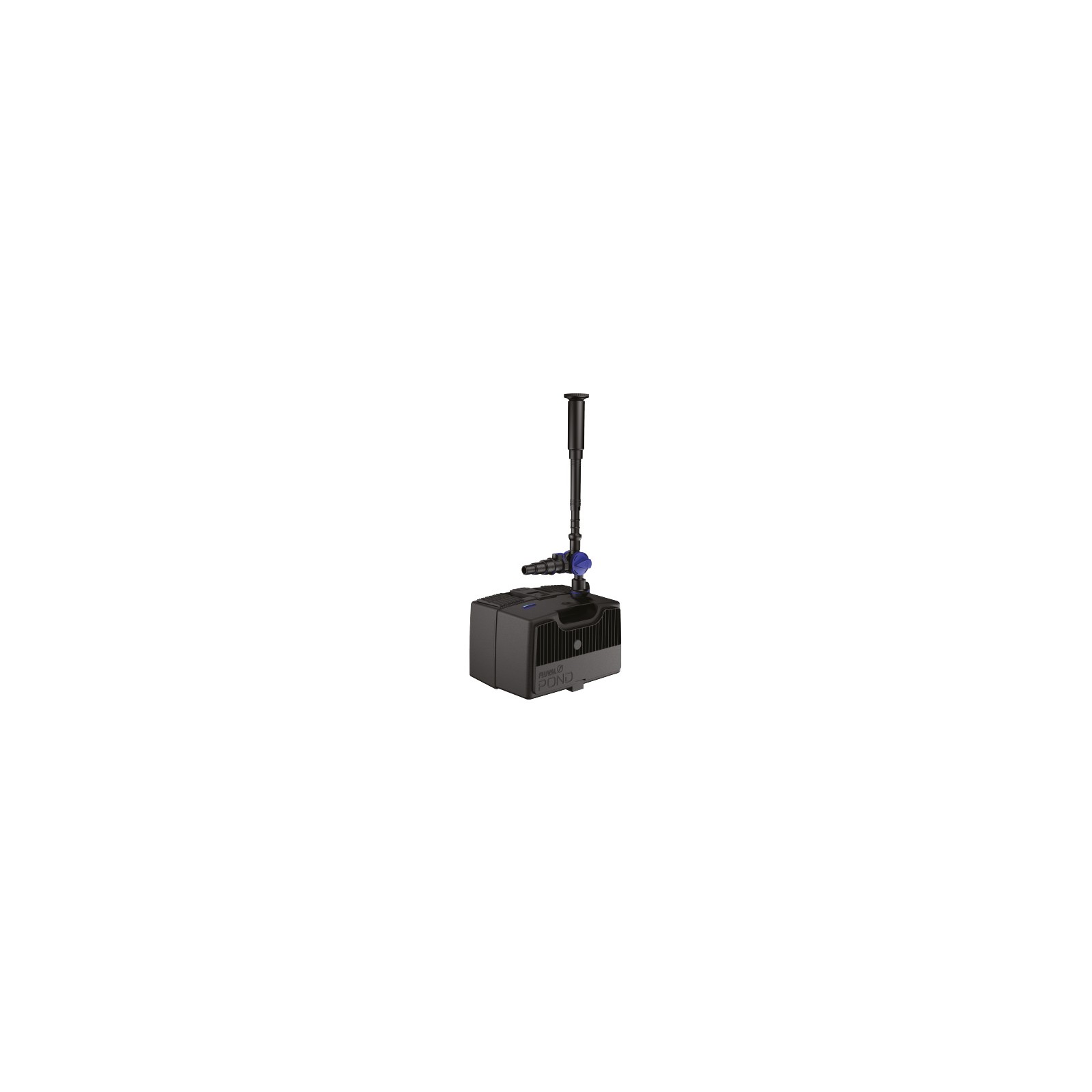

copy of Filtral UVC Oase Laghetto filter

A versatile genius: with filter function, water game, ventilation nozzle (ventilation nozzle supplied, starting from Filtral UVC 3000)

Guaranteed: Inclusa Warranty of clean water of OASE

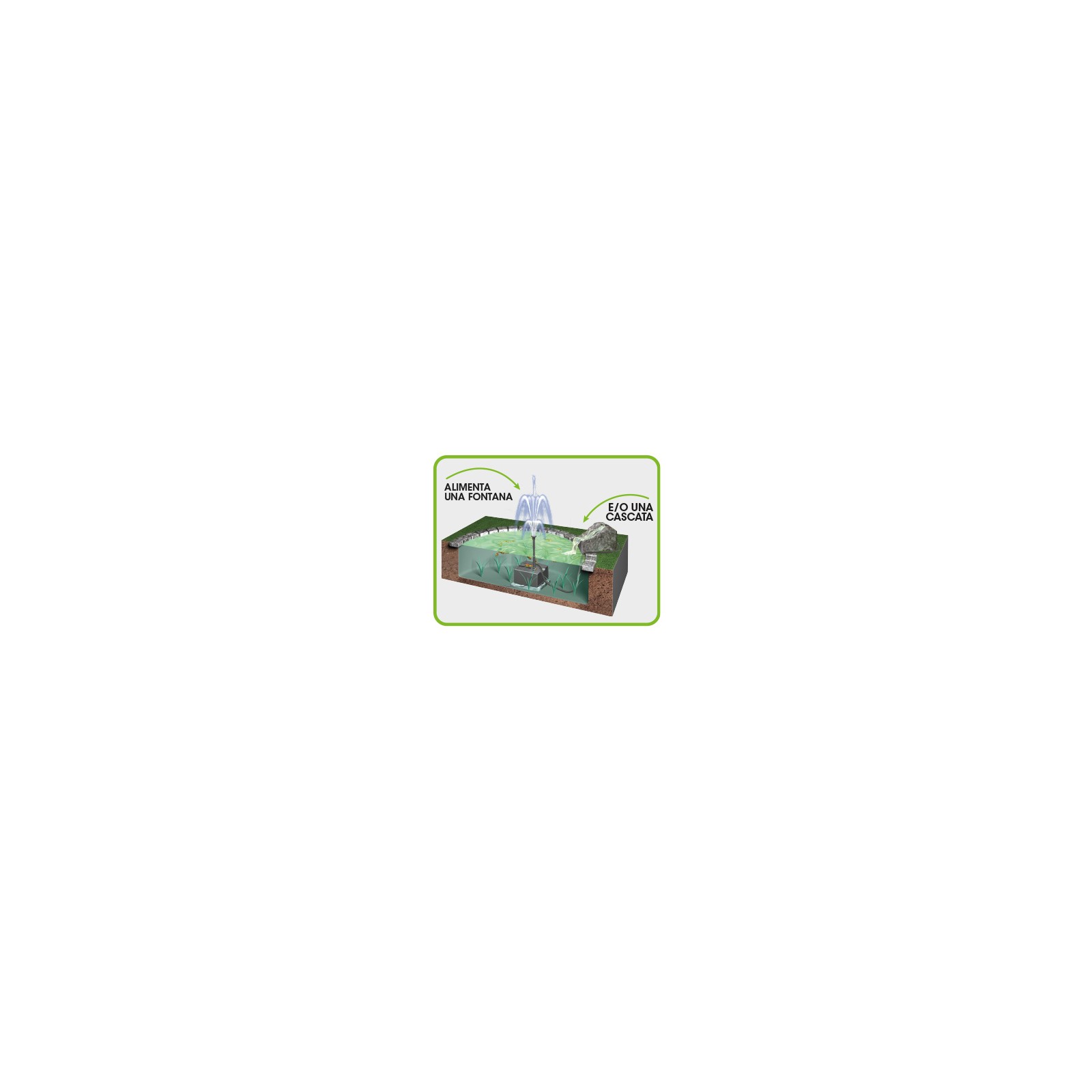

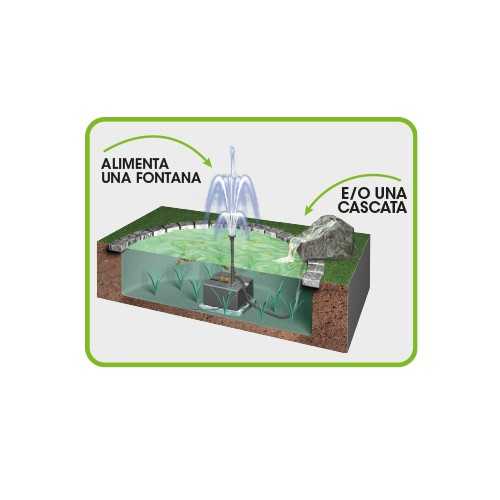

Adjustable: adjustable junction piece, for operation of water jets or streams

Adjustment: individual adjustment of the amount of water and height of the fountain

Covering: completely underwater installation, in this way the beauty of the pond is not affected

Overview: Thanks to the UVC clarifier with optical control of the functions

Model 1500

Dimensions (L x L x H) mm 207 x 228 x 130

Nominal voltage 230 V / 50 HZ

Absorbed power W 18

Electric cable length meters 10,00

Net weight kg 3,10

Warranty * Years 2

UVC power W 5

Max. Pump range. the / hours 750

Liters / hour max. the / hours 560

Meters Max. Water column. meters 0,90

Filter surface cm2 301

Number of blue filter sponges PCS 1

Number of red filter sponges PCS 1

Number of biosupperial elements PCS 1

Special filter granulate kg 0,10

Delivery side connection ½ "

Suitable for ponds up to max. m3 1,5

Suitable for ponds with fish m3 0,7

Ventilation set included in the supply No

Model 3000

Dimensions (L x L x H) mm 269 x 245 x 140

Nominal voltage 230 V / 50 HZ

Absorbed power W 36

Electric cable length meters 10,00

Net weight kg 3,90

Warranty * Years 2

UVC power W 9

Max. Pump range. the / hours 1500

Liters / hour max. the / hours 1200

Meters Max. Water column. meters 1,80

Filter surface cm2 440

Number of blue filter sponges PCS 1

Number of red filter sponges PCS 1

Number of biosupperial elements PCS 2

Special filter granulate kg 0,25

Delivery side connection ½ ", ¾", 1 "

Suitable for ponds up to max. m3 3,0

Suitable for ponds with fish m3 1,5

Ventilation set included in the supply Yup

Model 6000

Dimensions (L x L x H) mm 347 x 276 x 157

Nominal voltage 230 V / 50 HZ

Absorbed power W 52

Electric cable length meters 10,00

Net weight kg 5,20

Warranty * Years 2

UVC power W 11

Max. Pump range. the / hours 2500

Liters / hour max. the / hours 1700

Meters Max. Water column. meters 2,10

Filter surface cm2 697

Number of blue filter sponges PCS 1

Number of red filter sponges PCS 1

Number of biosupperial elements PCS 4

Special filter granulate kg 0,80

Delivery side connection ½ ", ¾", 1 "

Suitable for ponds up to max. m3 6,0

Suitable for ponds with fish m3 3,0

Ventilation set included in the supply Yup

Model 9000

Dimensions (L x L x H) mm 347 x 276 x 157

Nominal voltage 230 V / 50 HZ

Absorbed power W 52

Electric cable length meters 10,00

Net weight kg 5,30

Warranty * Years 2

UVC power W 13

Max. Pump range. the / hours 2500

Liters / hour max. the / hours 1700

Meters Max. Water column. meters 2,10

Filter surface cm2 697

Number of blue filter sponges PCS 1

Number of red filter sponges PCS 1

Number of biosupperial elements PCS 4

Special filter granulate kg 0,80

Delivery side connection ½ ", ¾", 1 "

Suitable for ponds up to max. m3 9,0

Suitable for ponds with fish m3 4,5

Ventilation set included in the supply Yup
