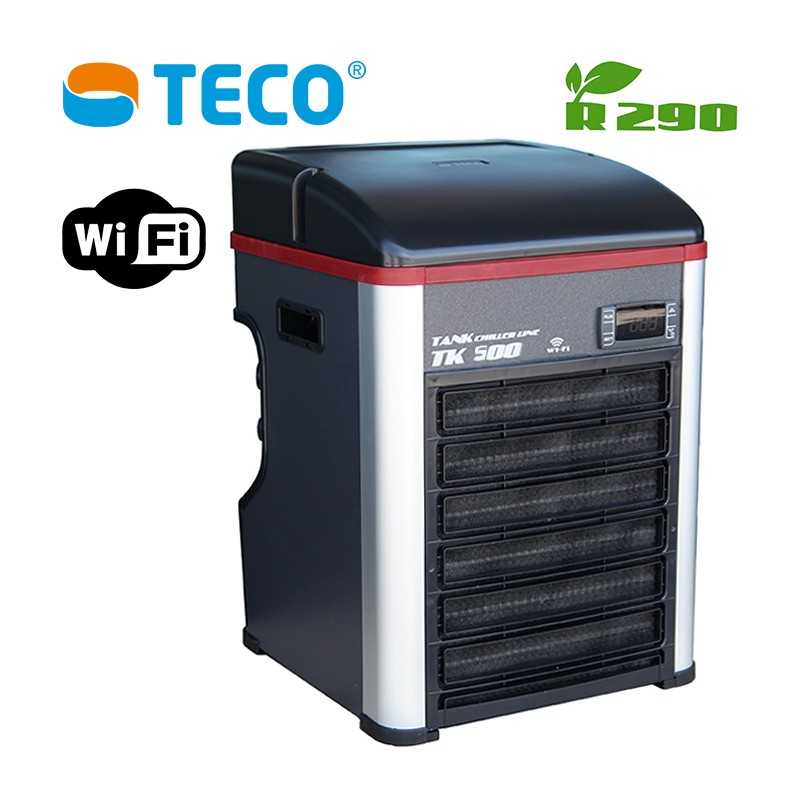

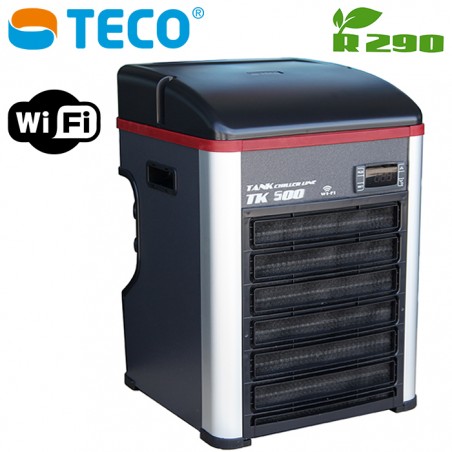

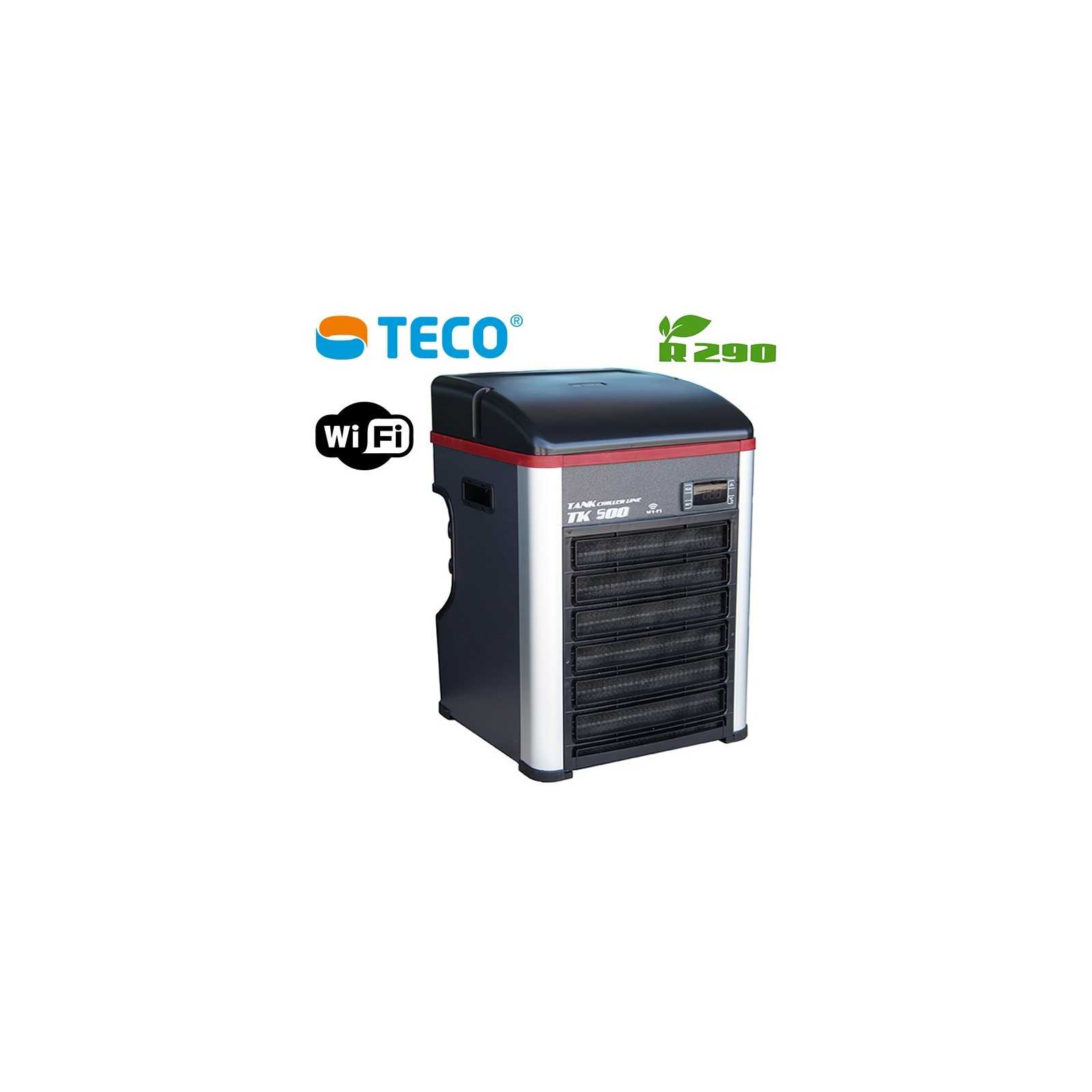

TECO 500H / 1000H / 2000H R290 air conditioning

Made in Italy design and production

High cold technology

The exclusive use of high-rendered compressors and the titanium coaxial exchanger, guarantees high performance. The set of technologies used to reduce noise levels and to obtain the highest values of COP COEFICIENT OF PERFORMANCE (yield), contributing to considerable energy saving.

Digital thermostat

Setting the intuitive functions and precise temperature reading, resolution 0.1 ° C / 0.2 ° F. The setting range is 0 ° -35 ° C (32 ° F-95 ° F) and the temperature is maintained constant with a minimum differential (0.5 ° C / 1 ° F). Display in ° C or ° F and moreover, there are safety alarms.

Aesthetics and functionality

The chiller, with an innovative design, is characterized by a solid structure designed to ensure ideal oxidation protection. The essentiality of the form and the compact dimensions are also adaptable to restricted spaces.

Unique features

The innovative Tecaair System, thanks to the possibility of rotation of the conveyor, guarantees the chiller an optimal air exchange and the expulsion of heat from the furniture. Maintenance of easy and quick air filter. The innovative "crushing" "crushing calipers allow easy removal of the chiller for a possible maintenance.

Technical data TK500H R290 code AM801900

Power supply - 230V-50Hz (other power supplies available on quantity)

Electric power Cooling - 225 W

Ecological gas - R290

Minimum water flow - 400 lt / h

Tank volume - up to 500 lt

(Temp. Water 25 ° C - Temp. Environment 30 ° C - Thermal load 0.5 W / LT)

Dimensions - mm. 310 x 310 x 416 (h)

Dimensions - in. 12.2 x 12.2 x 16.38 (h)

Weight - 16.5 kg

Connections - 3/4 "connection - 16mm tube diameter int.

Technical data TK1000H R290 code AM801905

Power supply - 230V-50Hz (other power supplies available on quantity)

Electric power Cooling - 315 W

Ecological gas - R290

Minimum water flow - 500 lt / h

Tub volume - up to 1000 lt

(Temp. Water 25 ° C - Temp. Environment 30 ° C - Thermal load 0.3 W / LT

Dimensions - mm. 310 x 310 x 458 (h)

Dimensions - in. 12.2 x 12.2 x 18.03 (h)

Weight - 19.7 kg

Connections - 3/4 "connection - 16mm tube diameter int.

Technical data TK2000H R290 code AM801910

Power supply - 230V-50Hz (other power supplies available on quantity)

Electric power Cooling - 440 W

Electric power Heating - 300 W

Ecological gas - R290

Minimum water flow - 600 lt / h

Tub volume - up to 2000 lt

(Temp. Water 25 ° C - Temp. Environment 30 ° C - Thermal load 0.3 W / LT)

Dimensions - mm. 310 x 310 x 500 (h)

Dimensions - in. 12.2 x 12.2 x 19.69 (h)

Weight - 21.4 kg

Connections - 3/4 "connection - 16mm tube diameter int.
