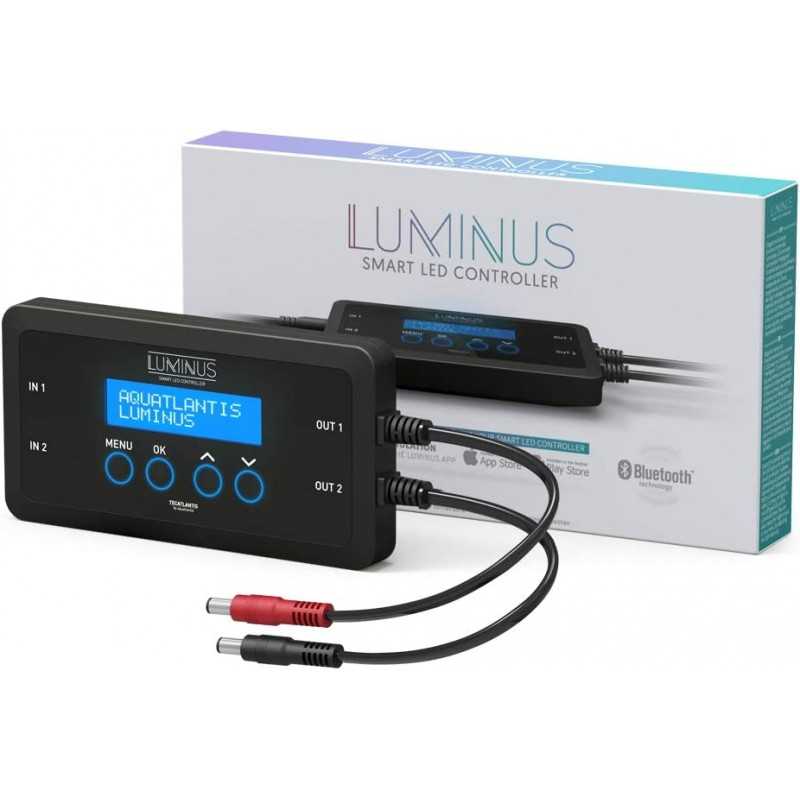

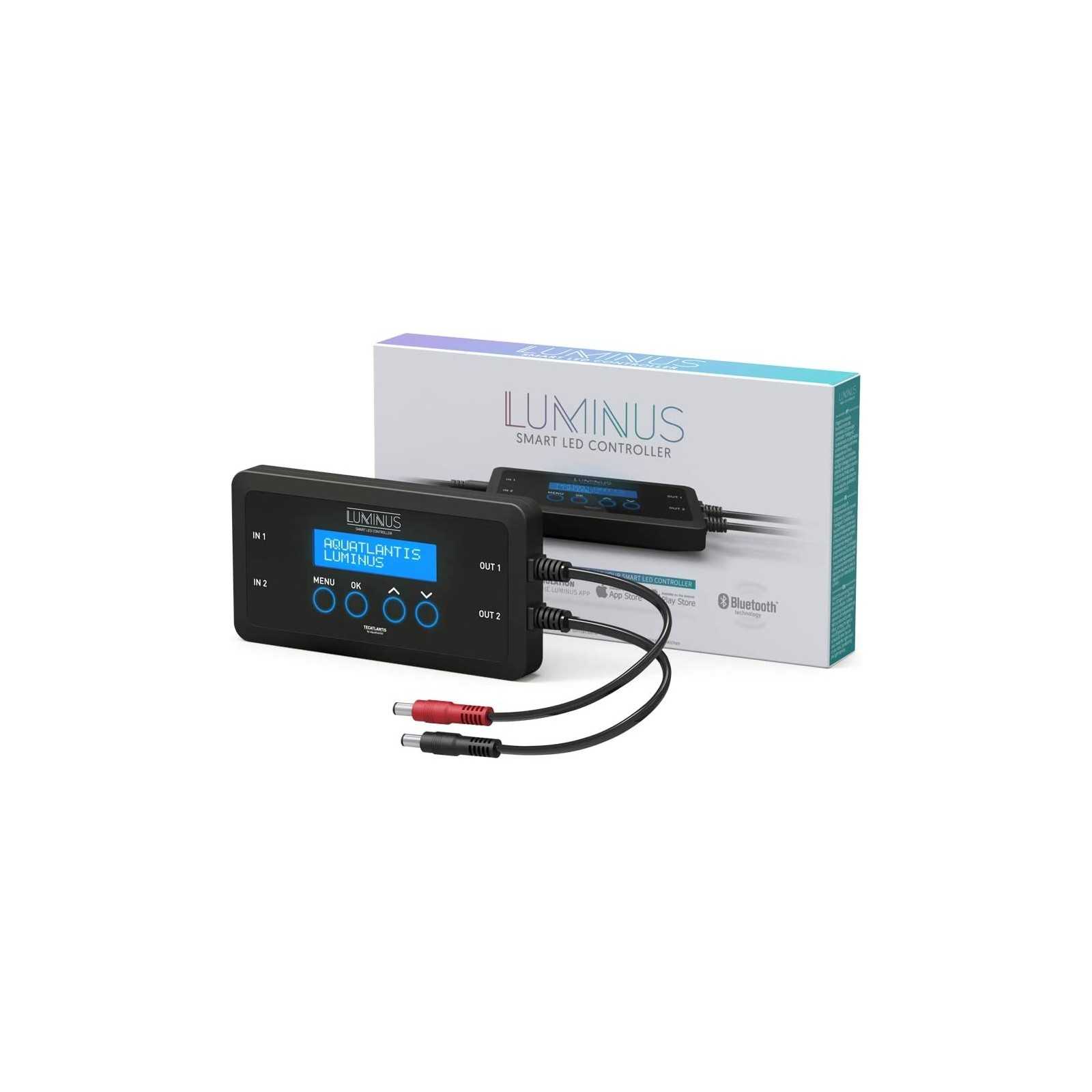

Luminus Smart LED Controller Aquatlantis For Easy LED ceiling lights

Aquatlantis Luminus, intelligent controller with apps for ceiling lights Aquatlantis

The Luminus - Smart LED Controller allows you to control all the parameters independently and based on the user's wishes. It has two independent channels (maximum 5 A per channel) with four light intervals each, allowing you to recreate daylight with sunrise and sunset effect, turning and turning off the lighting units gradually (between 10 and 90 minutes). It is also possible to recreate the night atmosphere in the aquarium, adjusting the intensity of light (from 10 to 100%). And to make things even simpler, a mobile app for Android and iOS devices is available. Through the LUMIND app, the user has access to the Extra Storm function that simulates a storm condition in the aquarium. Compatible with all products Tecatlantis.

If you use more than one lamp, you need to consider that the intensity of the transformer current must match the current intensity required for lighting units. For example, for two light units of 2.5 to each, a 5 A transformer is required. Power supply voltage between 12 V and 24 V.

If three or four lighting units are used, you need to have a splitter cable to connect the lighting units to the controller.

This controller allows you to adjust the intensity of the light you want in your aquarium. Connect your smartphone to the Luminus controller with the app available for Android and iOS to easily adjust the intensity of the light.

Connecting the LED UNIVERSAL 2.0 LED Ceiling Leder:

Since the LED Universal 2.0 ceiling lights Aquatlantis They have a two-channel structure, it is necessary to power each channel of the ceiling light by splitting (via the splitter cable) the supplied transformer.

If you want to connect to the same luminous controller two ceiling lights 2.0 (with the exception of models 1200 and 1450mm) it will be necessary to connect to the same output channel of the illuminus (using a splitter) each pair of channels of the two ceiling lights: channel Red ceiling light A with the red ceiling light channel B at the Luminus output 1; black ceiling light channel with the black ceiling light channel B at the Luminus output 2; The 2 inputs of the Luminus with the two transformers supplied with the ceiling lights will then be fed.

As for the 1200mm and 1450mm models 2.0, it is not possible to match the coupling using a single luminous controller as each of these ceiling lights, to work, need already departing 2 transformers whose total amperage exceeds The 5th maximum that the single Luminus channel can support; It can therefore only mount a luminusion for each ceiling light by connecting the two channels to the two controller outputs and feeding this last with the two transformers supplied with the ceiling light itself.
