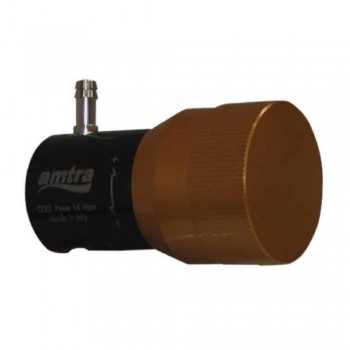

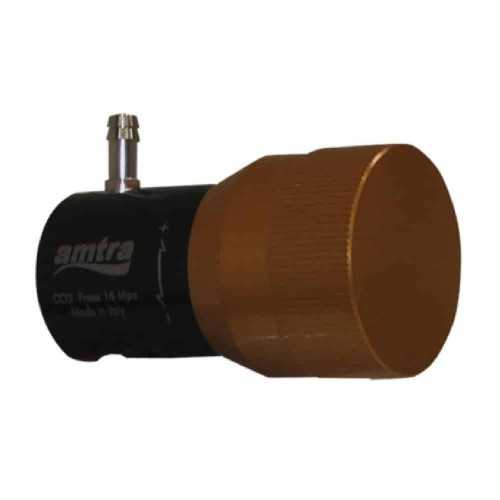

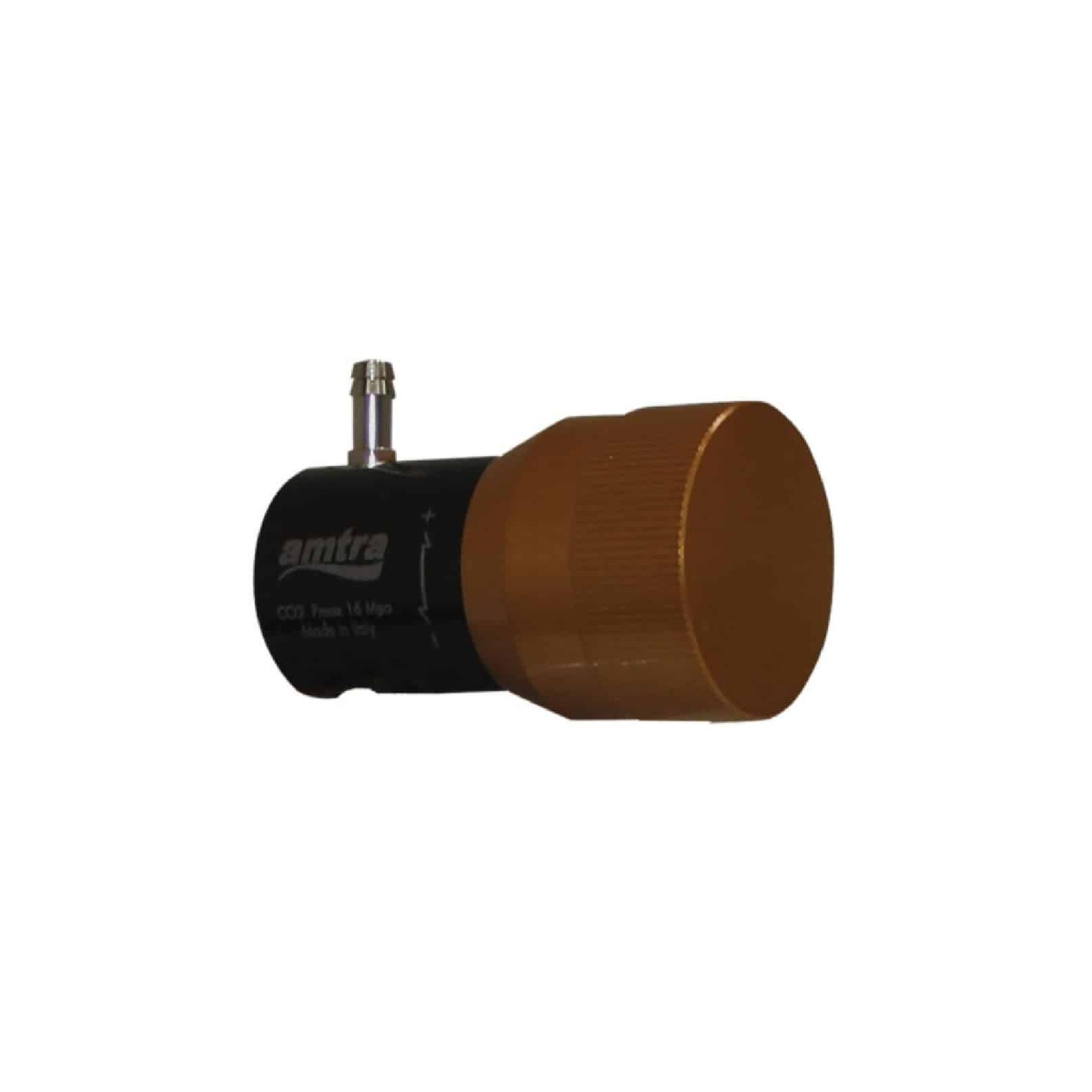

Atra CO2 System pressure reducer spare

The Pressure reducer for AMTRA CO2 System It is an essential component for the adjustment of carbon dioxide in the aquarium. Designed specifically for cylinders with attack M10x1, allows precise control of the CO2 flow to ensure optimal growth of the plants and the stability of the aquatic ecosystem. Thanks to his adjustment knob, it allows precisely The amount of CO2 delivered, adapting to the needs of each aquarium.

Main features

• Compatibility: cylinder AMTRA CO2 System from 500g attack M10x1

• Precise adjustment: adjustment knob to dose the number of bubbles / minute

• Integrated security: The bottle valve closes automatically when the reducer is removed

• Simple installation: you manually screw to the cylinder without the need for tools

• Adaptability: Compatible with rechargeable cylinders (via adapter, max pressure 120 bar)

• Minimum maintenance: Resistant and calibrated system to ensure stable delivery over time

Technical data

• Attack thread: M10x1

• Supported maximum pressure: 120 bar (with rechargeable cylinder adapter)

• Material: High resistance metal alloy

• Precision adjustment: Pre-calibrated 500 bubble / min stiletto valve (adjustable)

• Compatibility with CO2 tubes: 3.5x5 mm (internal / external diameter)

Installation instructions

1. Make sure the adjustment knob is completely closed ("-").

2. Slowly screw the pressure reducer to the cylinder until a resistance be perceived, then tighten it firmly.

3. Connect the CO2 tube to the "bottom" output of the reducer and to the stop.

4. Adjust the CO2 delivery based on the needs of the aquarium, monitoring the number of bubbles.

Maintenance and security

• If the stiletto valve is obstructed, it is possible to clean it with a cutter (2-2.5 x 0.5 mm), opening it slightly to flow the CO2.

• Do not use the reducer for food purposes.

• Store the cylinder in a vertical position and away from heat sources.

The Pressure reducer AMTRA CO2 System It is the ideal choice for a controlled and secure delivery of CO2, a fundamental for a lush and healthy aquarium.
