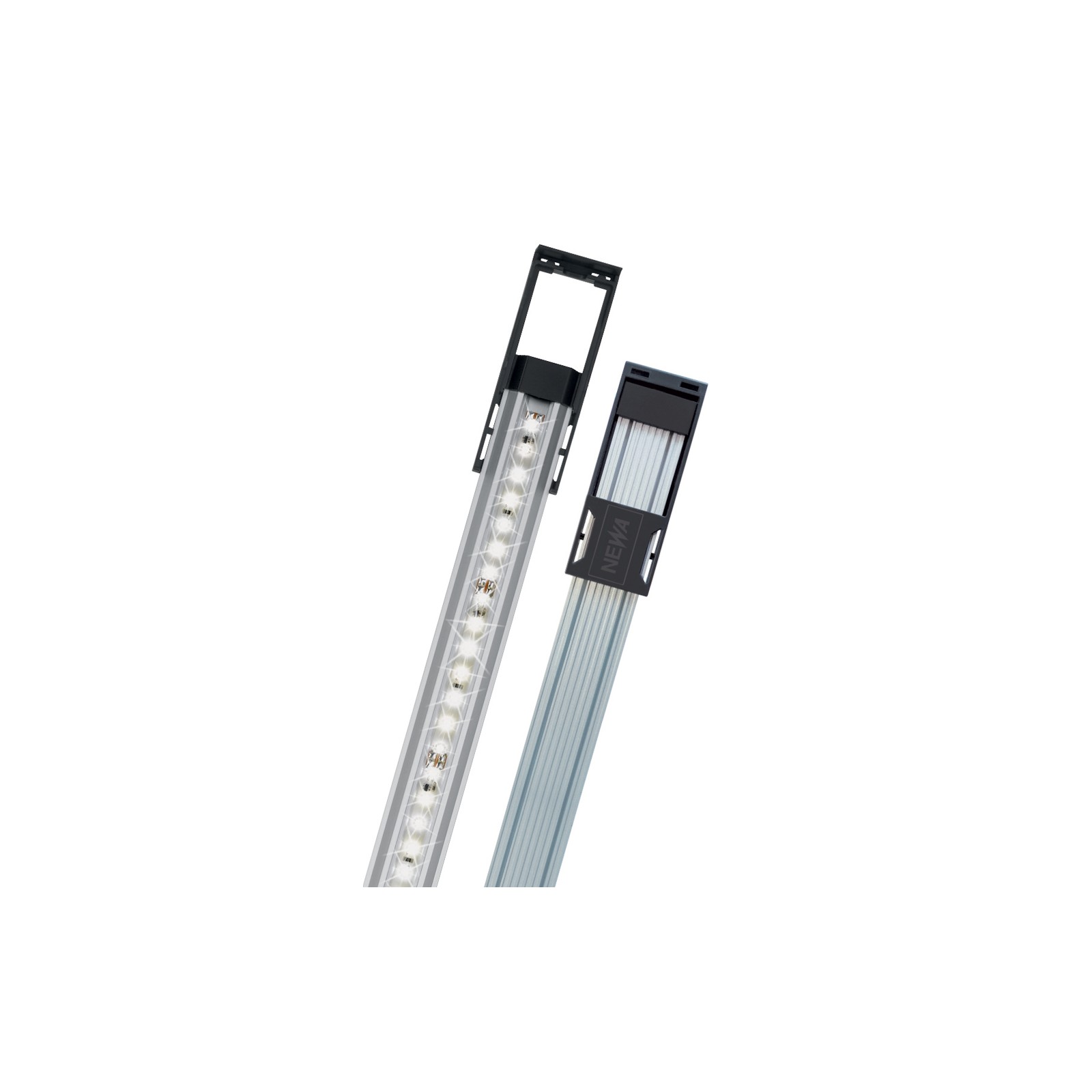

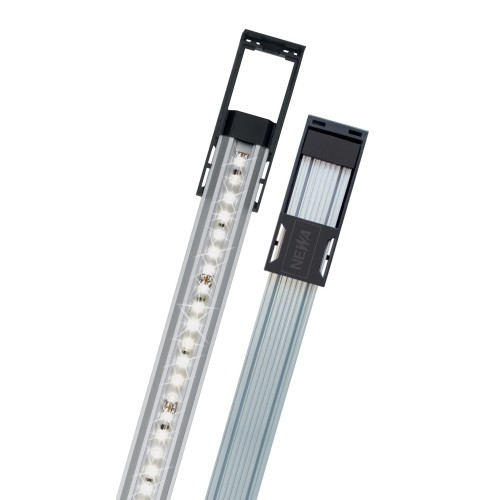

copy of NEWA Slim LED bar (NO ALIMENTER) for NEWA Ego Aquariums

Newa slim LED Plans it represents a modern and reliable solution for the lighting of plantquarques aquariums, where the quality of light is decisive for the biological balance of the tank.
The spectrum Plans at 8000 K It is designed to effectively support chlorophilian photosynthesis, improving development, color and vigor of aquatic plants without excessively emphasizing the algal growth if used correctly.

General features of the Newa Slim Led Plans line

• Ultra-thin linear LED ceiling light for freshwater aquariums

• Specific luminous spectrum Plans 8000 K

• High light efficiency up to 101 LM / W

• Minimal design, ideal for open tanks

• Production Made in Italy

• External power supply to 24v for maximum safety

• On / off switch integrated on the cable

Security and protection

The ceiling light is designed for daily use in aquatic environment:

• IPX7 protection degree, accidental diving resistant up to 1 meter for 30 minutes

• Feed very low voltage (24V) to reduce each electrical risk

• Minimum safety distance from water: 15 mm

• Structure designed to correctly dissipate heat

Installation and compatibility

The Newa Slim Led Plans is extremely versatile:

• Adjustable supports included to adapt to different tub widths

• Usable on open aquariums

• Compatible with glass up to 4 mm thick

• Simple interlocking mounting with "click" fixing system

Luminous performance and available configurations

The line Plans (NSP) includes different lengths to cover a wide range of aquariums:

Newa slim LED Plans NSP 128

• Adjustable ceiling light length: 188 - 215 mm

• LED configuration:

  • 12 white LEDs

  • 2 red LEDs

  • 2 blue LEDs

• Color temperature: 8000 K (Plants)

• Luminous flux: 145 Lumen

• Power consumption: 1,44 W

• Luminous efficiency: 101 LM / W

• Power: 24 V

• Recommended use: Nano Cantumati Aquariums

Newa Slim LED Plans NSP 178

• Adjustable ceiling light length: 196 - 265 mm

• LED configuration:

  • 18 white LEDs

  • 3 red LEDs

  • 3 blue LEDs

• Color temperature: 8000 K (Plants)

• Luminous flux: 218 Lumen

• Power consumption: 2.16 W

• Luminous efficiency: 101 LM / W

• Power: 24 V

• Recommended use: small aquariums with real plants

Newa slim LED Plans NSP 228

• Adjustable ceiling light length: 246 - 310 mm

• LED configuration:

  • 24 white LEDs

  • 4 red LEDs

  • 4 blue LEDs

• Color temperature: 8000 K (Plants)

• Luminous flux: 291 Lumen

• Power consumption: 2.88 W

• Luminous efficiency: 101 LM / W

• Power: 24 V

• Recommended use: small and medium-sized styled aquariums

Newa slim LED Plans NSP 278

• Adjustable ceiling light length: 295 - 365 mm

• LED configuration:

  • 30 white LEDs

  • 5 red LEDs

  • 5 blue LED

• Color temperature: 8000 K (Plants)

• Luminous flux: 363 Lumen

• Power consumption: 3.6 W

• Luminous efficiency: 101 LM / W

• Power: 24 V

• Recommended use: Standard planted aquariums

Newa Slim LED Plans NSP 378

• Adjustable ceiling light length: 396 - 465 mm

• LED configuration:

  • 42 white LEDs

  • 7 red LEDs

  • 7 blue LED

• Color temperature: 8000 K (Plants)

• Luminous flux: 509 lumens

• Power consumption: 5.04 W

• Luminous efficiency: 101 LM / W

• Power: 24 V

• Recommended use: average aquariums with the most demanding planting

Newa slim LED Plans NSP 430

• Adjustable ceiling light length: 448 - 517 mm

• LED configuration:

  • 48 white LEDs

  • 8 red LEDs

  • 8 blue LED

• Color temperature: 8000 K (Plants)

• Luminous flux: 581 Lumen

• Power consumption: 5.76 W

• Luminous efficiency: 101 LM / W

• Power: 24 V

• Recommended use: Medium and medium-large aquariums

Newa Slim LED Plans NSP 528

• Adjustable ceiling light length: 546 - 615 mm

• LED configuration:

  • 60 white LEDs

  • 10 red LEDs

  • 10 blue LEDs

• Color temperature: 8000 K (Plants)

• Luminous flux: 727 Lumen

• Power consumption: 7.2 W

• Luminous efficiency: 101 LM / W

• Power: 24 V

• Recommended use: long aquariums and extended plants

Each model uses:

• High efficiency white LEDs

• Integrated red and blue LEDs to support photosynthesis

• Uniform luminous distribution along the whole bar

Recommended use

• Ideal for aquariums low and medium tech plants

• Suggested photoperiod: 6-8 hours a day

• Suitable for both novice and experienced aquariums

• Excellent to maintain a balance between plants growth and algal control

Maintenance

Maintenance is minimal:

• Periodic cleaning with slightly wet soft cloth

• No use of aggressive detergents

• Cool the lamp before any intervention
