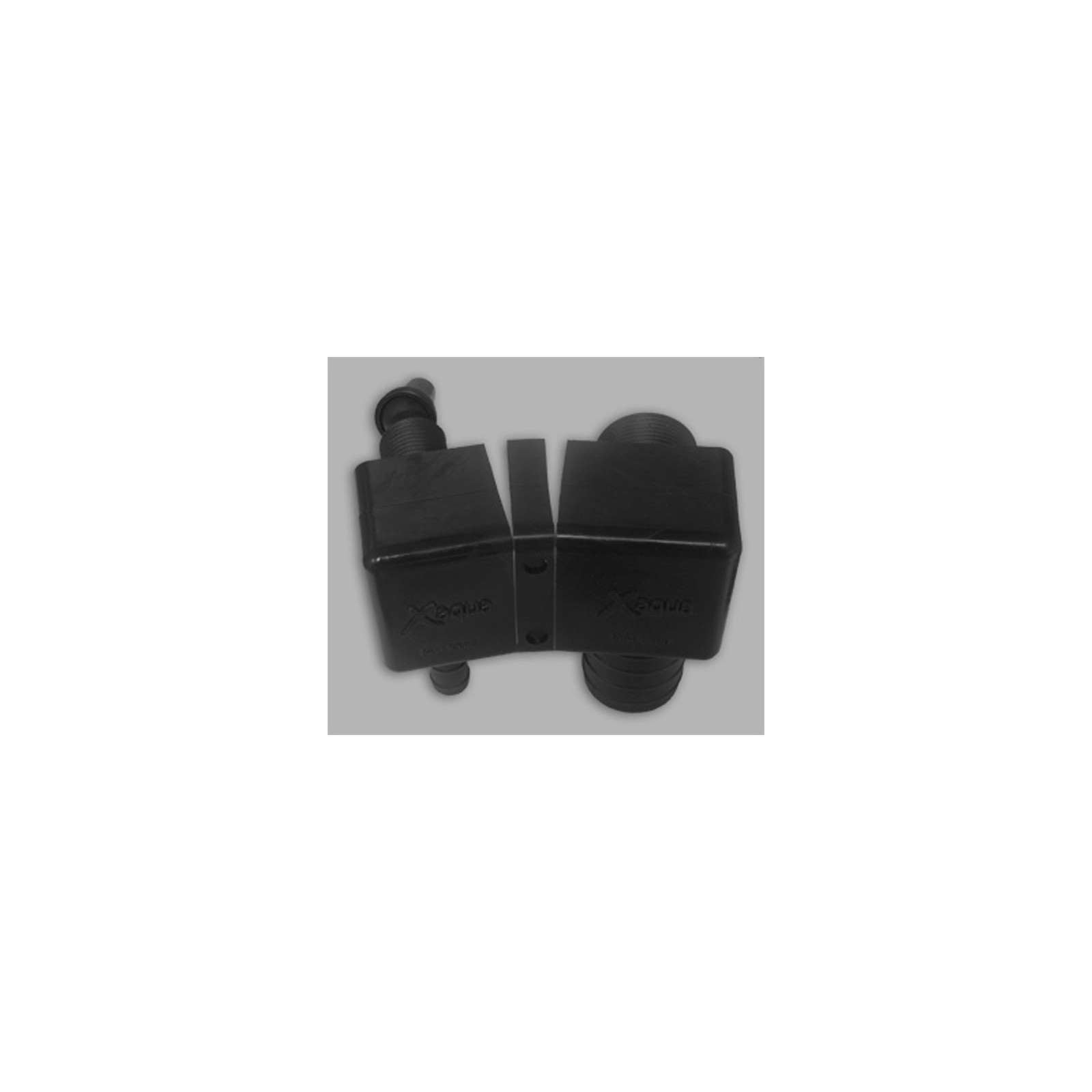

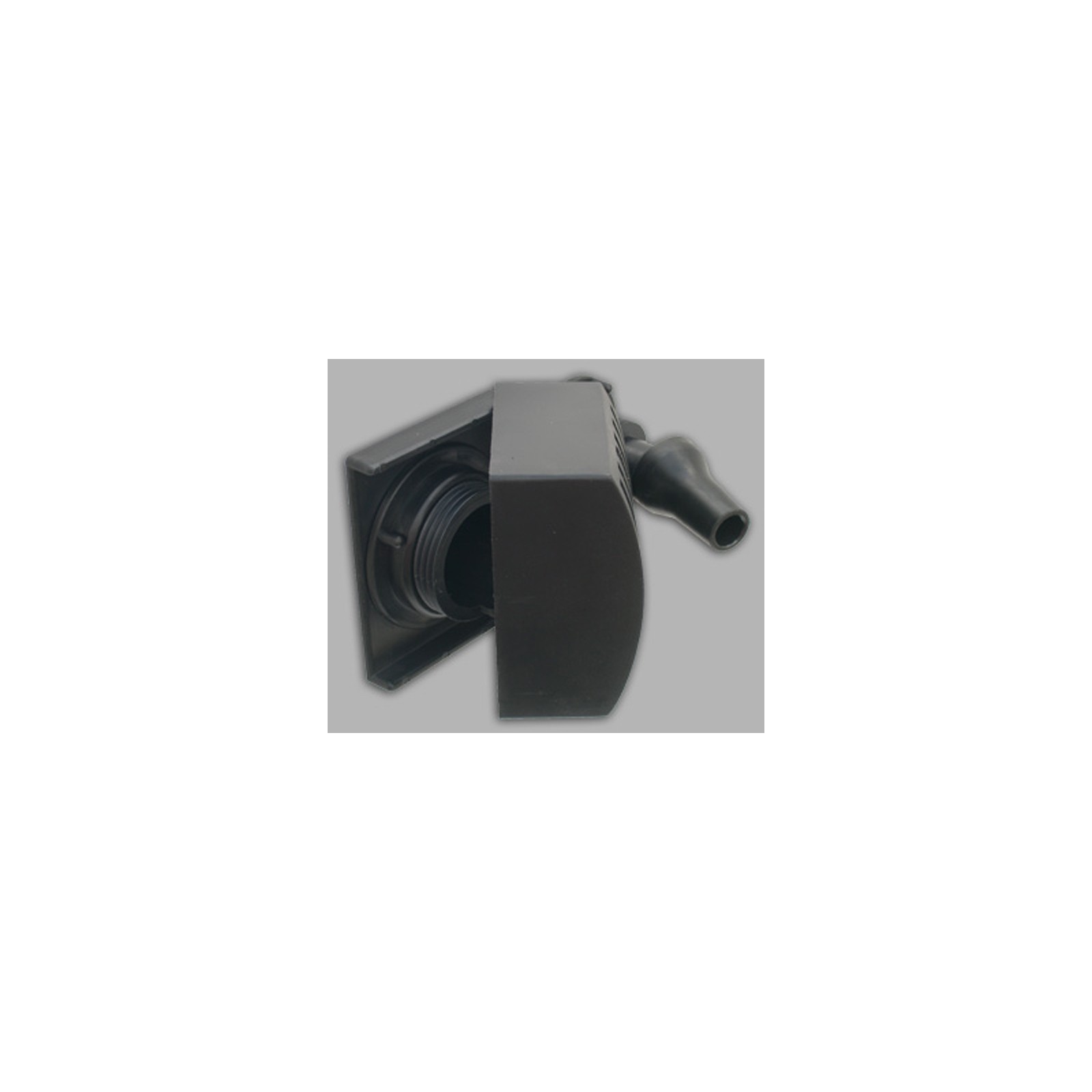

iNOUT ACQUA MARINA with MANDATA of ø 20x26 mm

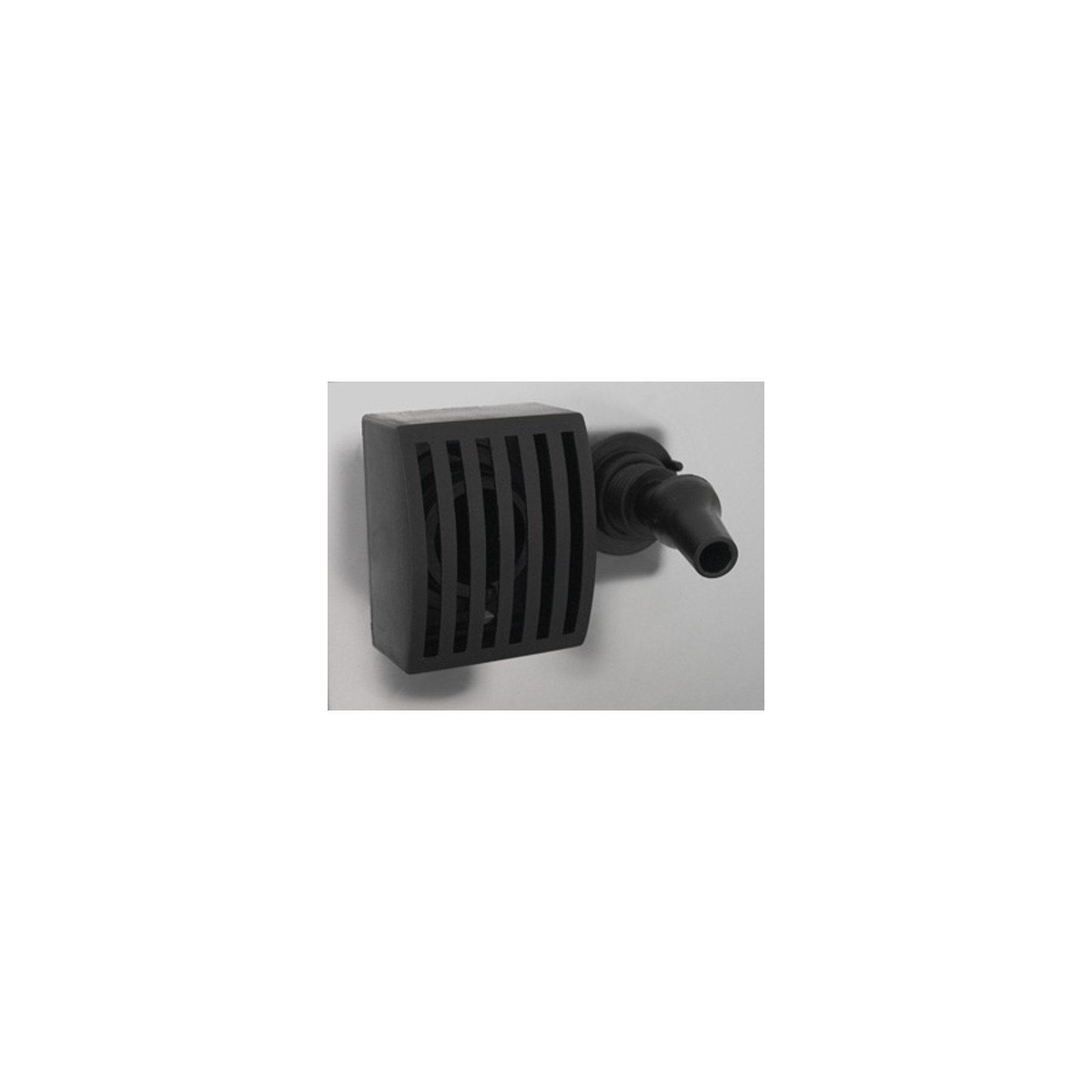

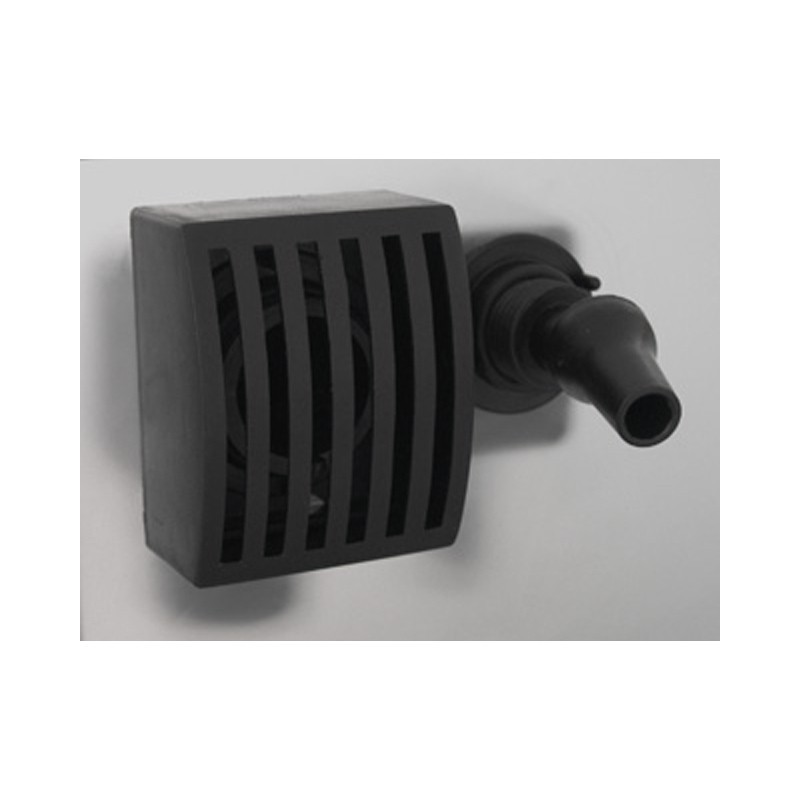

Overflow complete with suction grid and directional system of water jet.

Full overflow of: anti-obstruction suction grid and removable for proper cleaning; directional system of water jet; loading and unloading water*. Compared to the previous model, the internal flow of the lift has been increased. The fall and other characteristics remained unchanged. Installable in aquariums with external sump filter and 2 wall holes as pattern. It applies externally, the volume of the tank remains unchanged. The specific internal conformation gives it maximum silence. Water flow from the pump with wave effect. For maintenance operations, such as cleaning pipes, it is enough to lower the water level by 4 cm. You do not need to drill the base of the tank, excludes all possible water loss risks with conventional owerflows. Injection molded with high-strength, non-toxic and shockproof plastic material. Maximum pump capacity 2500 L/h. Prepared to be divided into two parts and thus obtain the mandate and the fall of separate water. External dimensions: L=12, P=5, H=6 cm.

INCLUDED IN THE PACKAGE:

- 1 INOUT complete with grid with support, 2 dice and water outlet nozzle.

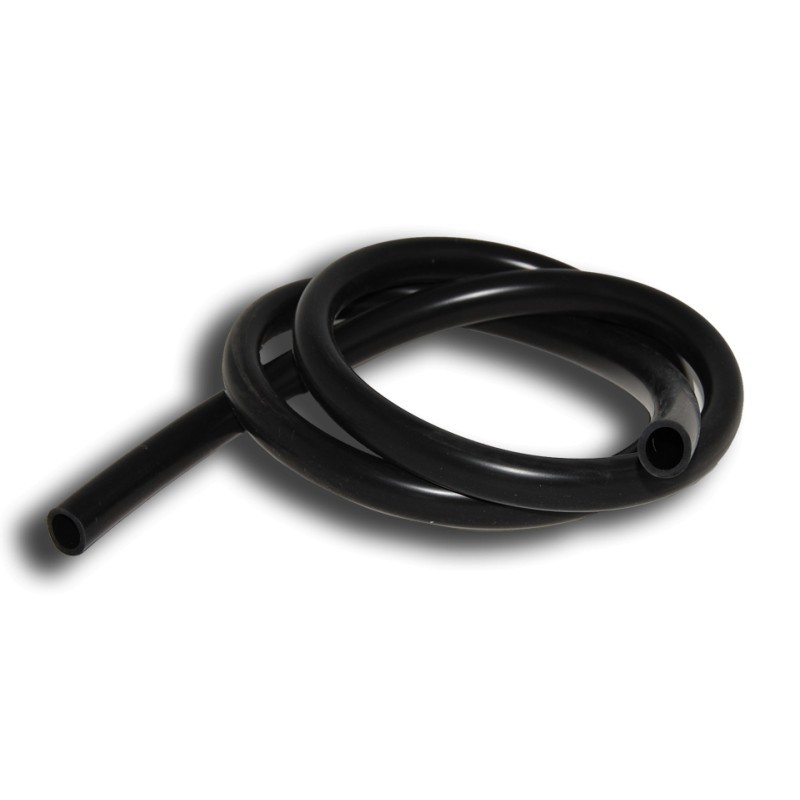

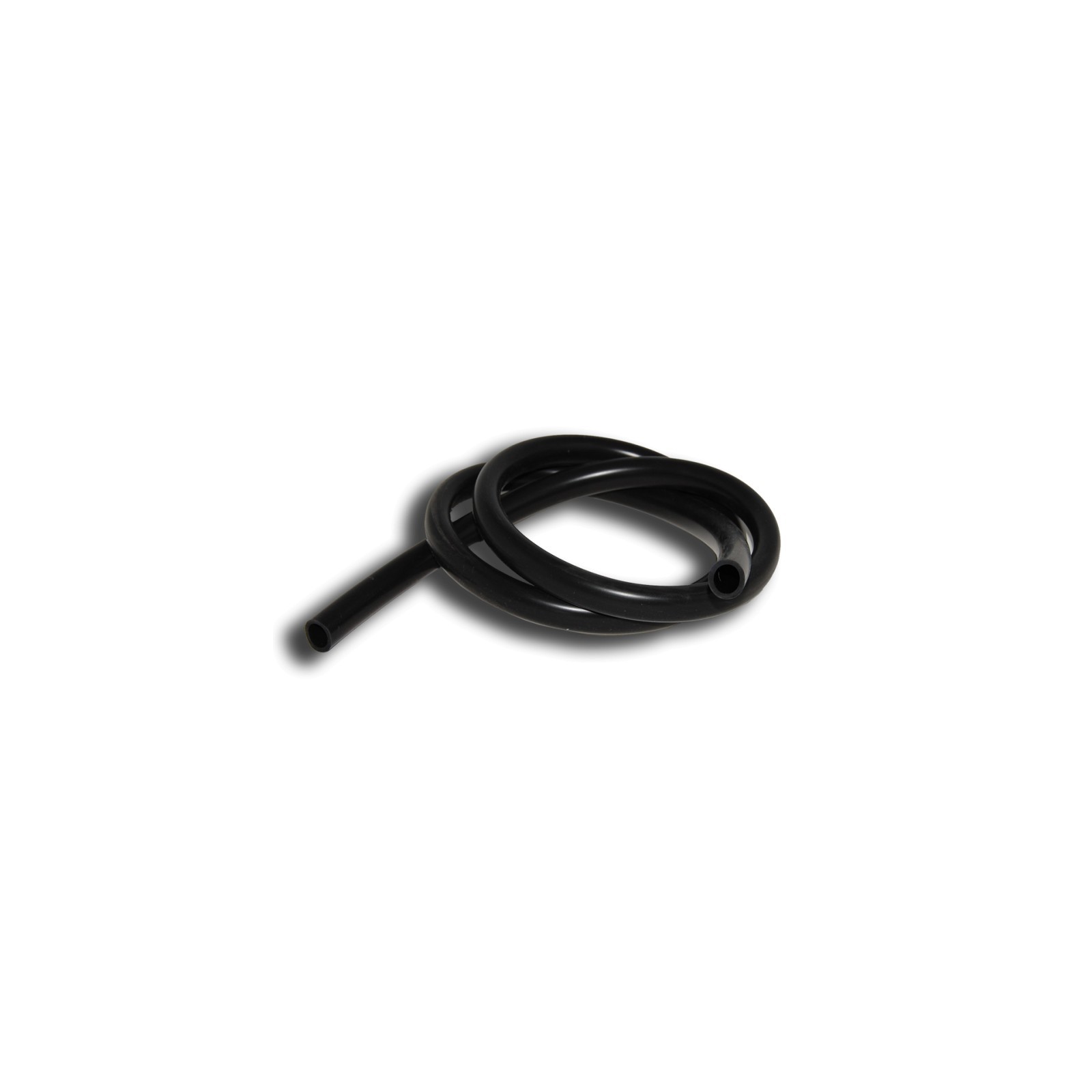

- 1 black non-toxic silicone water loading pipe. Length: 1.5 mt - ø 20x26 mm*.

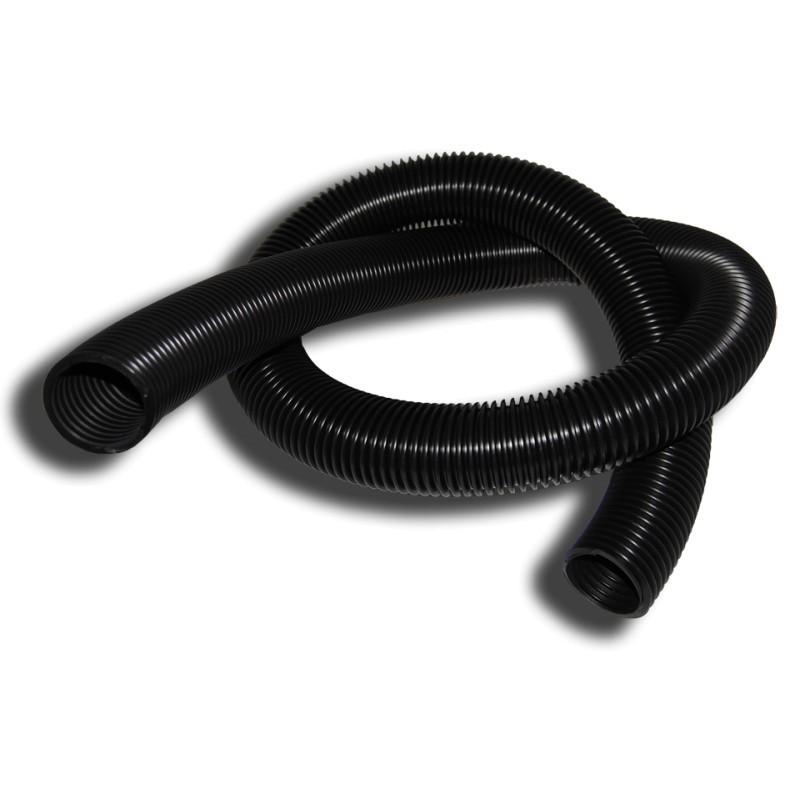

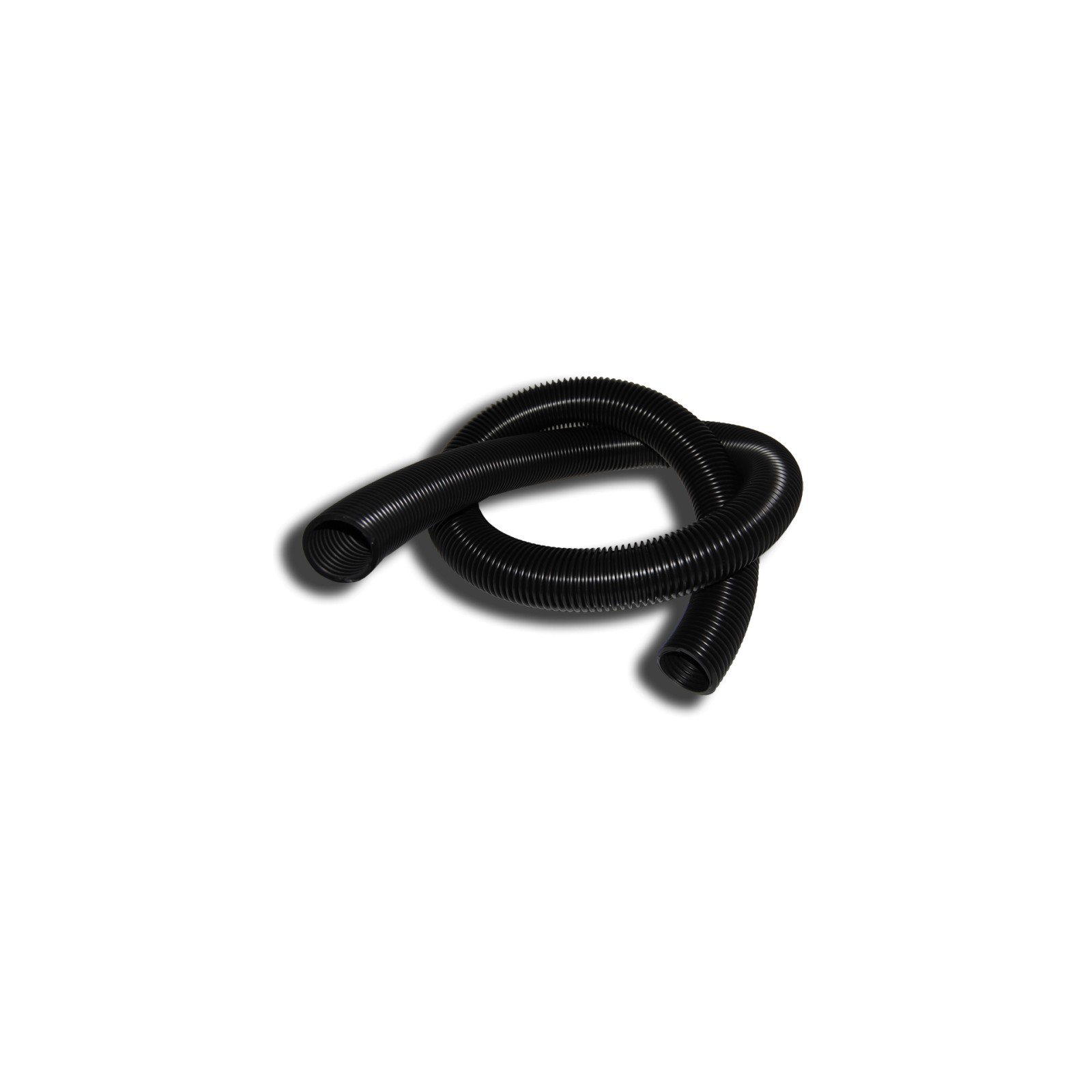

- 1 OUT water discharge pipe in black non-toxic silicone plastic material. Length 1.5 mt - ø 40x46 mm*.

- 1 adhesive blade for the construction of holes on the tank.

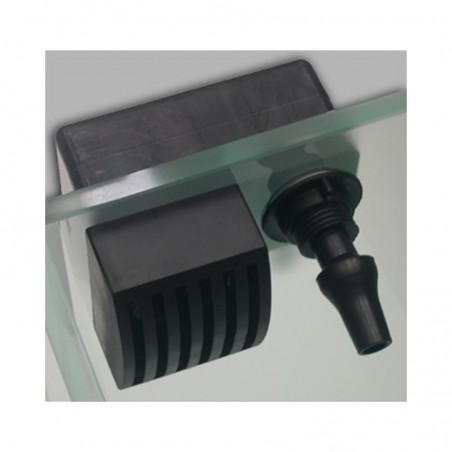

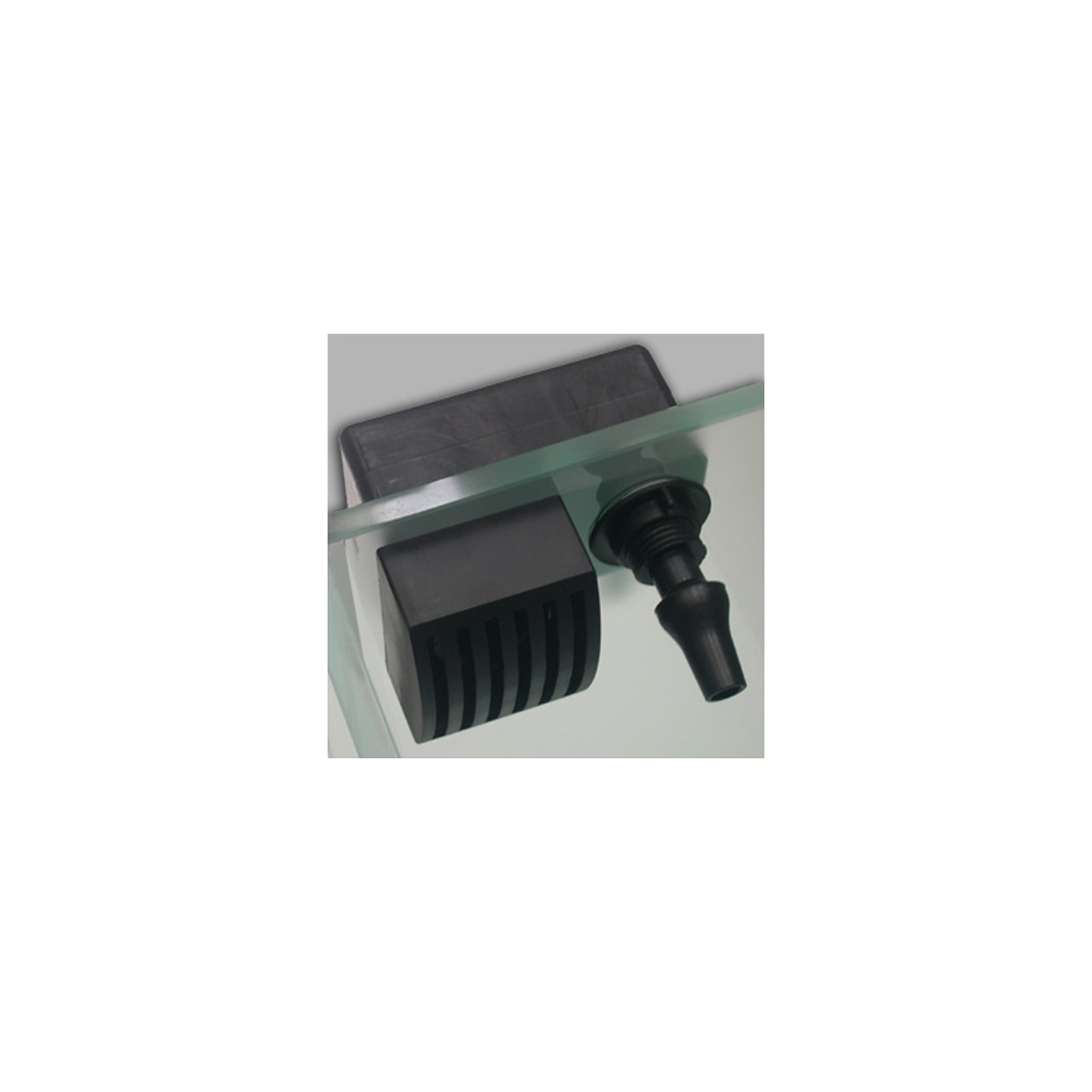

INSTALLATION: To ensure an airtight seal this device is equipped with O-RING directly printed on the exhaust. Installed the INOUT, these will be located outside the aquarium.

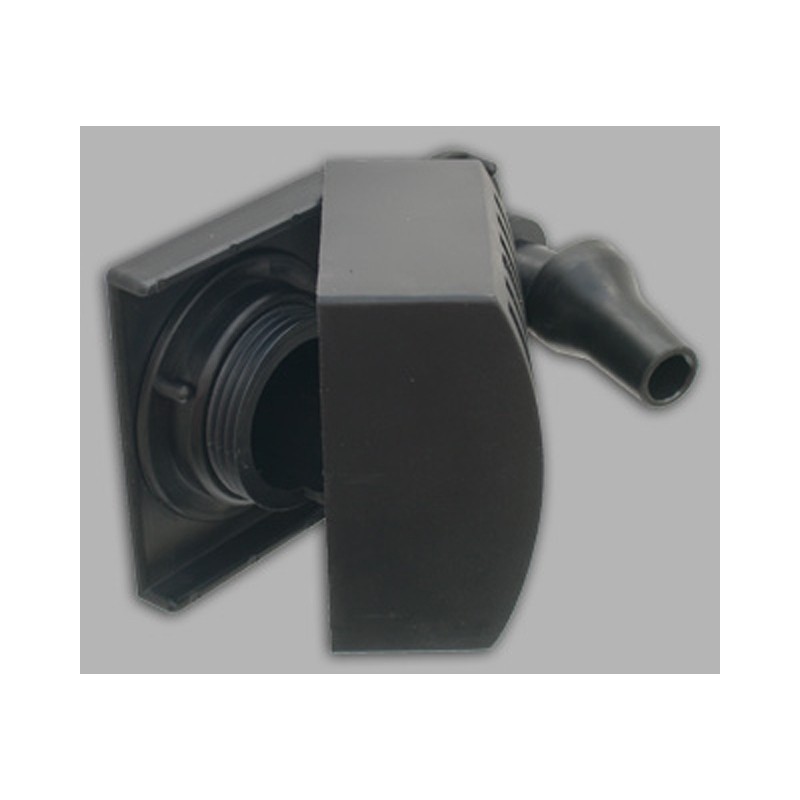

Place the INOUT by placing it in the holes. Insert the support for the grid inside the exhaust vent and tighten the dice with the hands applying a minimum pressure, without using mechanical tools. Then apply the grid in the appropriate support and nozzle in the loading rack. To insert the nozzle immerse it in boiling water for a few seconds. Connect the water inlet and outflow tubes and ensure that there is no leak during the discharge.

It is important that glass holes are perfectly calibrated to ensure proper water seal. The drilling diagram shows the distances and the minimum and maximum diameter of the holes. The greater the diameter of the holes, the greater the accuracy of the distances to be respected. The dima-guida indicates exactly the distance from the edge (in height), the diameter and the distance between the holes to be respected. Place the INOUT so that the o’rings are centered on the hole. Clean the pipes before use. Periodically clean the pump and pipes to keep the INOUT efficient.

*Including only in the version with pipes.

It is possible to request the pipes:
1 1.5 mt black non-toxic silicone water loading pipe.
1 OUT water discharge pipe made of plastic non-toxic material of 1,5 mt.
