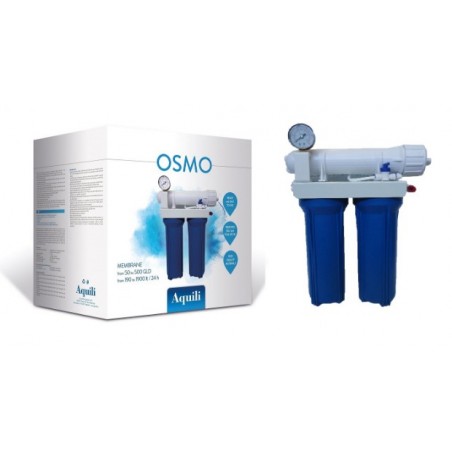

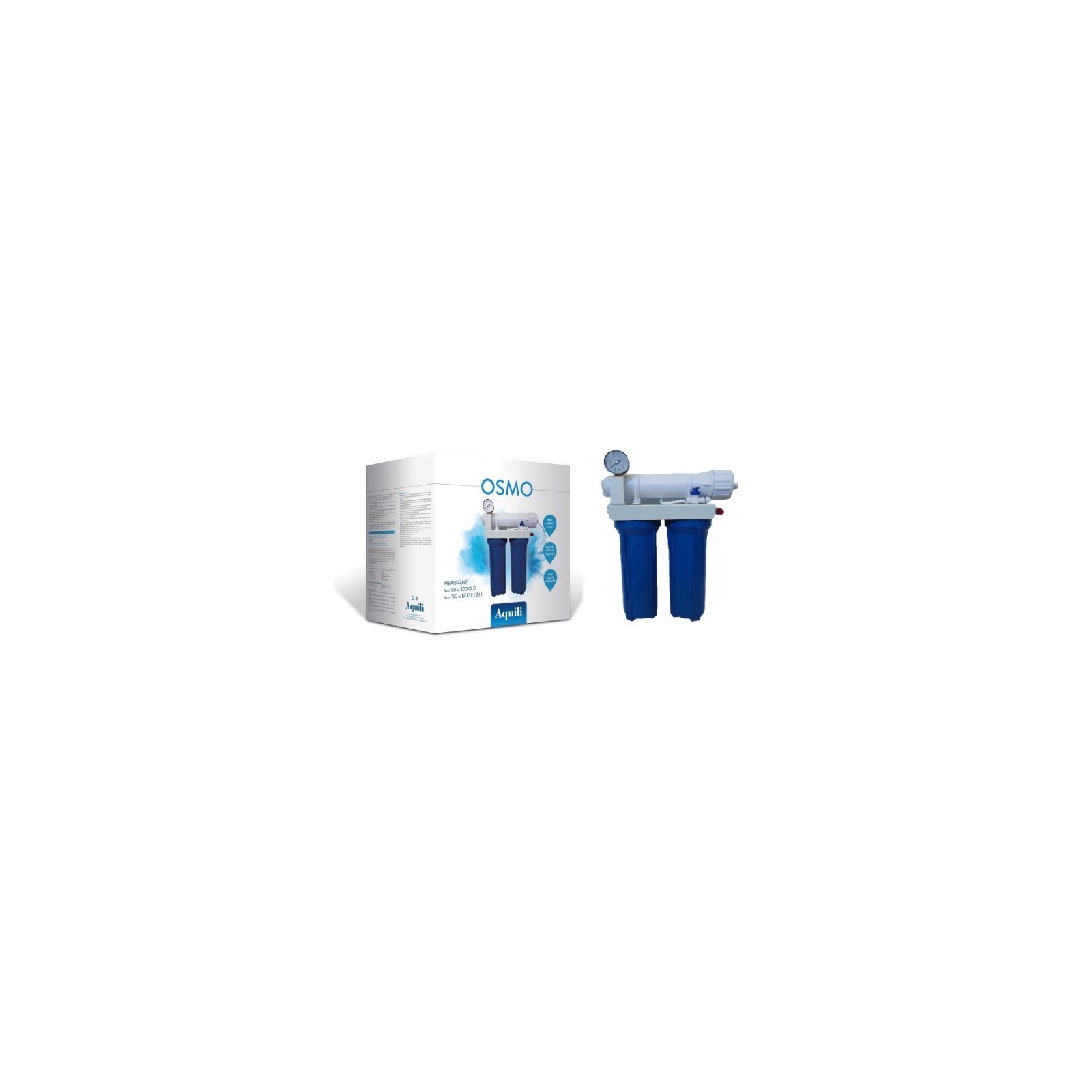

OSMO HQ+ New Osmosis system 3 stages Aquili

Name: OSMO HQ+ New Osmosis system 3 stages Aquili
Brand: Aquili
SKU: 2186
Price: 108.71 EUR
Availability: InStock

Brand: Aquili

OSMO FVM with 2 Filters 9" 3⁄4

with Valvola Lavaggio Membrana e Manometro

Available models:

OSMO75 189 l/g - real 4 l/h - 96 l/g

Last items in stock

€108.71 €116.00 -€7.29

VAT included

Composed of:

• Filter Sediment 9” 3⁄4 5 microns

• Carbon Block 9 filter 3⁄4

• Osmotic Member 75 GLD

• Pressure gauge

• Valve Membership

RO line instructions

Watch out for

· Align the plant always and only to a cold water pipe (at maximum 30° C) otherwise it will worsen the deduction rate and the membrane can spoil itself before the time.

· Check that the membrane is pushed well at the bottom, before screwing the cover of the container (4). (the central tube of the membrane must be aligned with the edge of the container without cover).

· Do not force the fitting (especially the elbow fitting – Flow Restrictor ), but, if once started, the system showed losses, use the teflon.

· Slide the water into the charcoal filter before connecting it to the membrane, so that it can purge any impurities present.

Previous Next

· Osmotic water and residual water must always be able to flow freely; never close with faucets or similar things.

· Protect the membrane from frost and drying. Once used, the membrane must no longer dry.

· The Ph value of the permeate is not predictable, high Ph values can be easily corrected downwards with CO2, if the Ph value is too low it is sufficient to air the water obtained abundantly.

· It is not possible with reverse osmosis to eliminate particularly high individual values, for example a high content of silicic anhydride or nitrate.

· Do not leave the car unattended during use.

· Do not use water for food use.

· Always use original spare parts.

· Regularly change the prefilter to sediment and carbon filter. The function of activated charcoal is to retain the chlorine which, if it passes, irreparably damages the membrane by tearing the microstructure. The salts will not be kept optimally and the value in microsiemens, of the outgoing water, will increase.

Installation instructions

1 Water input from the water network (red cap)

2 Prefilter to Sedimentation

3 Filter with Active Carbon

4 Diaphragm washing valve

5 Osmotic Member

6 Permeate – Osmotic water (blue map)

7 Concentrated – Waste water with Flow Restrictor (black plug)

8 Filter anti NO3-PO4-SiO2

Remove colored tapes.

In our system the water tap enters by means of the connection (agreement that is located inside the envelope), comes to a universal connection (1), and passes through a prefilter to Sedimentation (2) that holds the particles greater than 0.005 mm (5 microns). (The RO Basic model is without sediment filter; in this case the carbon filter also performs the mechanical filter function at 5 microns). After this first purification the water is flowed into a cartridge with activated carbon (3) which removes chlorine and also eliminates traces of pesticides, herbicides, metals and, also, the bad taste and/or smell that water can free. After passing through the charcoal filter, the water is sent under pressure to a special membrane (5) which allows only pure water to pass. The substances that harden water and harmful ones such as salts, carbonates, sulphates, heavy metals, pesticides, and even bacteria and viruses are retained and rinse with residual water. For mounting, the membrane should be inserted into its container so that the larger o-ring remains towards the cap, while the two small o-rings remain down. To achieve the desired effect, the quality of the osmotic membrane is decisive; the membranes used in our appliances (polyamide/polysolphon) are extremely resistant to bacterial aggression, have long life, are easy to store and remain unchanged for years. Once treated, the water is pre-canalized in the central tube of the membrane and comes out, pure, through the central duct (6). For the first installation, open the water tap and rinse the appliance for at least two hours to completely eliminate the dry membrane preservative; during this period you can verify that in channeling (7) at least a quadruple amount of concentrate compared to osmotic water produced.

We recommend using the plant for half an hour at least once a week; if the plant remains unused for

more than 14 days, before proceeding with the new use convey the osmotic water in the drain for at least 5 minutes.

If the system is not used for long periods, avoid drying the membrane by repositioning the 3 coloured tapes.

RONPS - Osmosis system with filter 2” anti NO3-PO4-SiO2 :

For the first use, before connecting the osmotic water to the NO3-PO4-SiO2 (8) anti filter, let the water flow for about 2 hours in order to completely eliminate the dry membrane preservative and prevent this from affecting the NO3-PO4-SiO2 (8) anti filter.

ROFV - Osmosis system with membrane washing valve:

For normal operation of the plant, the washing valve (white/blue tap) (4) must be closed.

The membrane washing makes the system more efficient: opening the valve all the water will go into waste, taking salts and what else accumulated in the membrane. This is a simple and fast way to clean the membrane from any residue, stretching its life. Below is the table indicating the frequency of washing.

Water hardness level

Total hardness

Frequency of washing

Tent

less than 7 °d

once every 4 weeks for 15 min.

Media 7 – 14 °d

once every 3 weeks for 15 min.

Duration 14 – 21 °d

once every 2 weeks for 15 min..

Very long more than 21 °d

after each use at least 5-10 min.
